600mm x 600mm(23.7"X23.7") D400_Heavy Duty Square Manhole Cover

Designed for typical petrol stations, BETTERCOVER composite manhole covers are available in load rating EN 124 D400 and has longer life span and has the capability to withstand heavy loads. Sealed manhole covers prevent any odors from escaping, as well as maintaining air pressure. Gas station covers are widely used in municipal, construction, communications, electricity, water supply, gas, highway, chemical and other areas.

Sample: Set / 1 Set (Min. Order)
Production time:
Quantity (set) 1-100 >100
Day 5 negotiated
Customized: Support customization
Transport: Support sea transportation

Select and buy

CATEGORY

Product description

summary

Quick details

Product name: SMC FRP Composite 600X600mm(23.7"X23.7") D400 Lockable Waterproof Manhole Cover And Frame
Size: 750X750X60mm(29.6"X29.6"X2.4")
Clear open: 600X600mm(23.7"X23.7")
Application: Freight station, wharf and other heavy roads and sites frequently used
Function: Waterpioof, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Color: Black Color

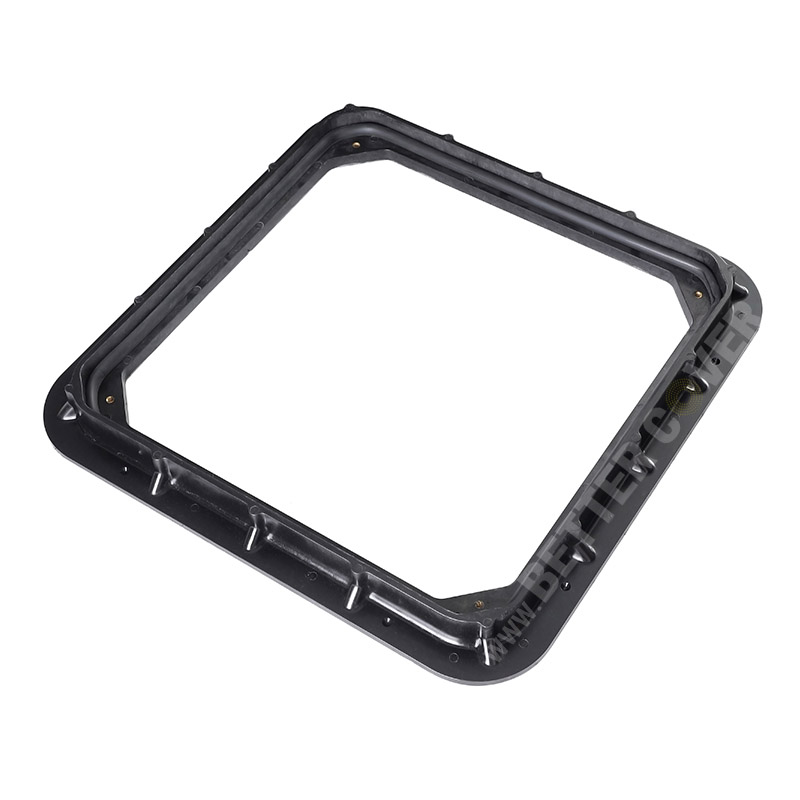

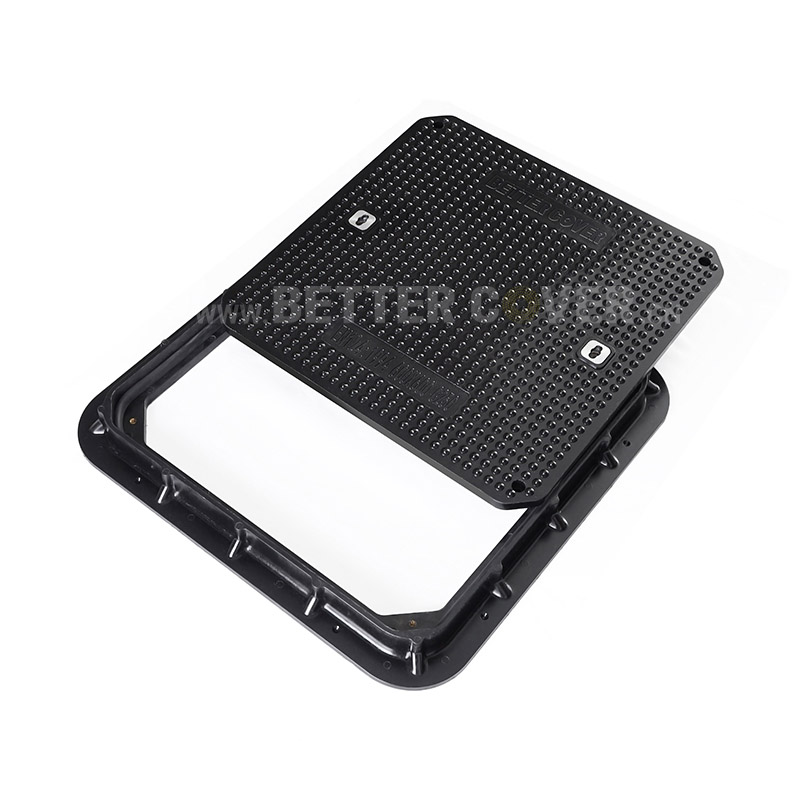

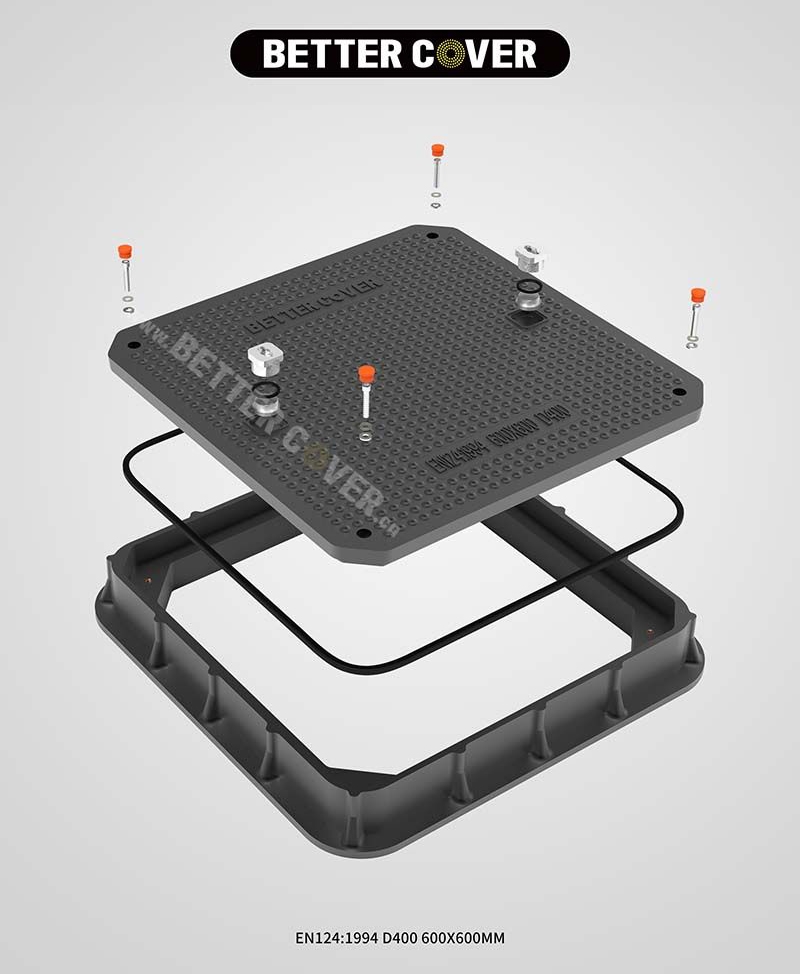

Product Structure: Manhole cover and frame, removable side sealing structure, removable sealing handle aluminum sleeve and 3 M8x40 hexagon socket cylinder head lockable bolts
Net Weight: 41Kg
Product Material: The manhole cover and frame are made of SMC FRP composite material, the removable side sealing structure adopts corrosion-resistant EPDM, the aluminum sleeve of removable sealing handle adopts aluminum alloy, and the M8x40 hexagon lockable bolt adopts 304 stainless steel
Working Temperature: -50℃～+150℃
Product Standard: BS EN124:2015
Load Ratings: D400(40TON)

Product details

Function	Waterpioof, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Product Color	Black Color

Product structure size (mm)	Manhole cover Depth	Manhole cover Dia	Manhole Frame Height	Load Ratings
	40	646X646	60	D400
	Manhole Frame Outer Dia	Clear Open Dia	Inspection Cocer	Weight(Kg)
	750X750	600X600		41

If the product is used in an unsealed environment for drainage or sewage ,the handle hole of the manhole cover is a drainage handle aluminum sleeve ,and removable rubber seal is not installed on the manhole Fram

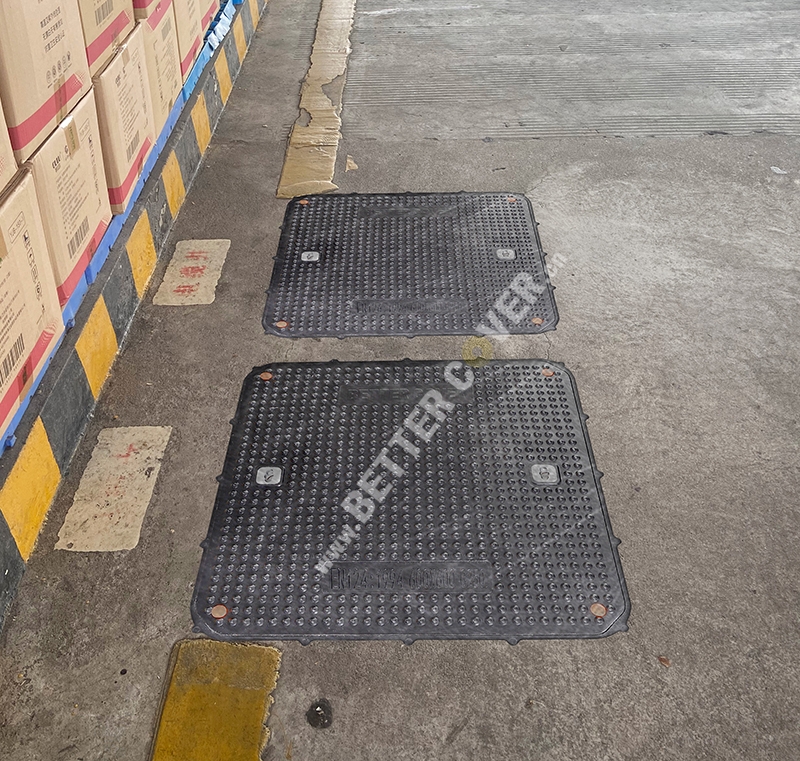

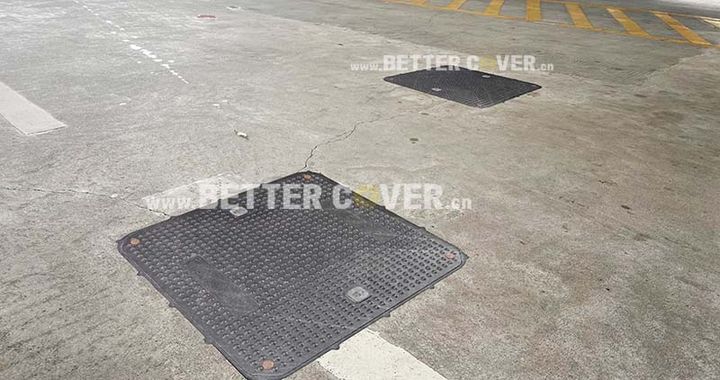

Application

Freight station
Wharf
Gas stations
Other heavy roads and sites frequently used

Constantly strive for perfection

●Sealed structure
Sealed structure to effectively prevent water from entering

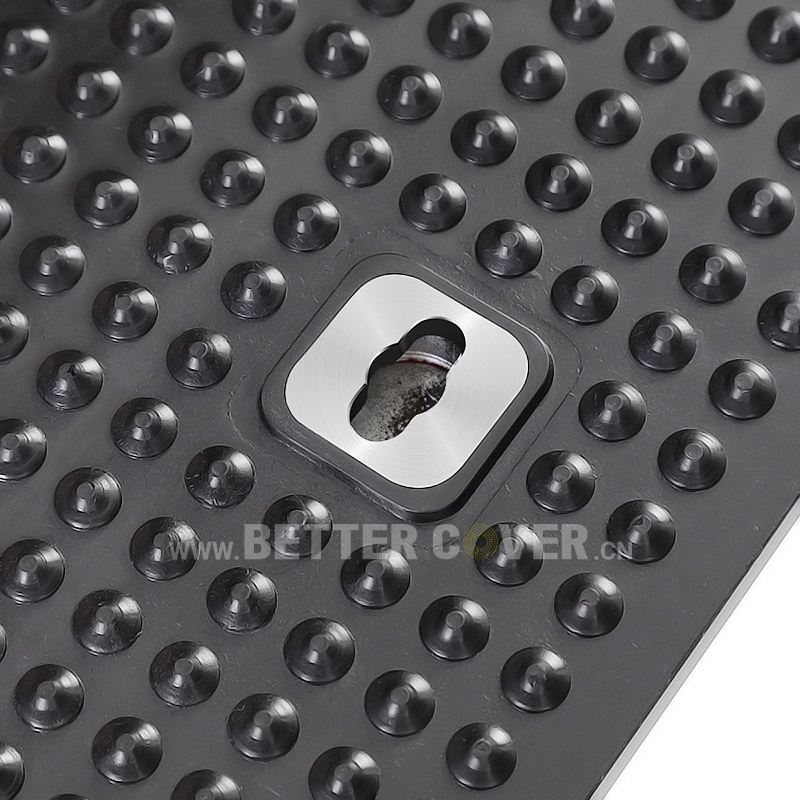

●Screw locking mechanism、Aluminum handle sleeve

● Support LOGO customization
Customer-specified Logo can be printed on the product

●Waterproof and non-slip

Because the upper surface of the manhole cover is a raised bridge structure, it can effectively prevent the accumulation of rainwater on the surface of the manhole cover. The anti-skid ability of the surface of the manhole cover is greatly improved.

●There are 2 product heights to choose from

●Tool There are 2 product heights to choose from

●Application

Light weight

The weight of composite manhole cover is 1 / 4 of that of traditional manhole cover with the same volume

Excellent bridge structure

We have mature OEM and ODM experience

Customizable logo, cover pattern, color and size

Factory Overview

Applications

Products comply with EN124-5 2015 and AS3996 2006 standards, and are suitable for applications in -50°-150° ambient temperature, as well as in lawns, indoors, sidewalks, non-motorized lanes,car parking lots 、Gas stations, freight stations, docks and other heavy roads and sites that are frequently used Meet all kinds of products with A15, B125,C250, D400, E600 load-bearing grades.

Packing and shipping

We can provide standard carton, wooden box, iron pallet and other packaging, or according to your requirements.
