| Quantity (set) | 1-100 | >100 |
| Day | 5 | negotiated |
Quick details
|
Function |

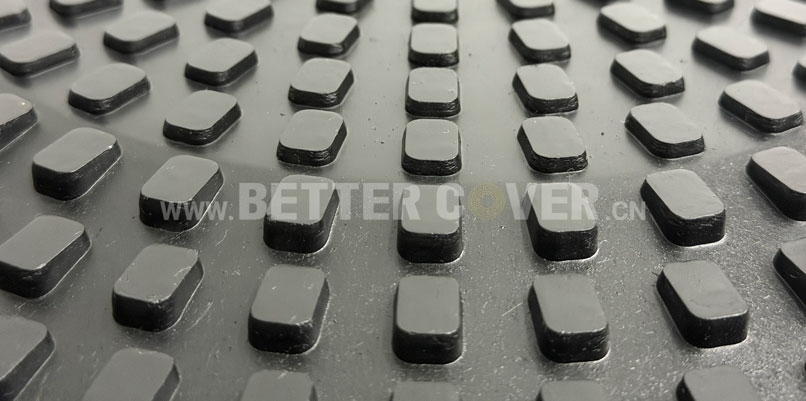

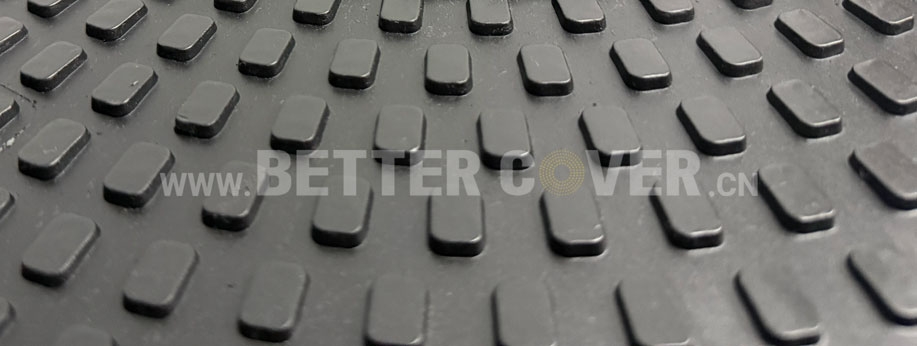

Sealed structure, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant |
|
Product Color |
Black Color |
|

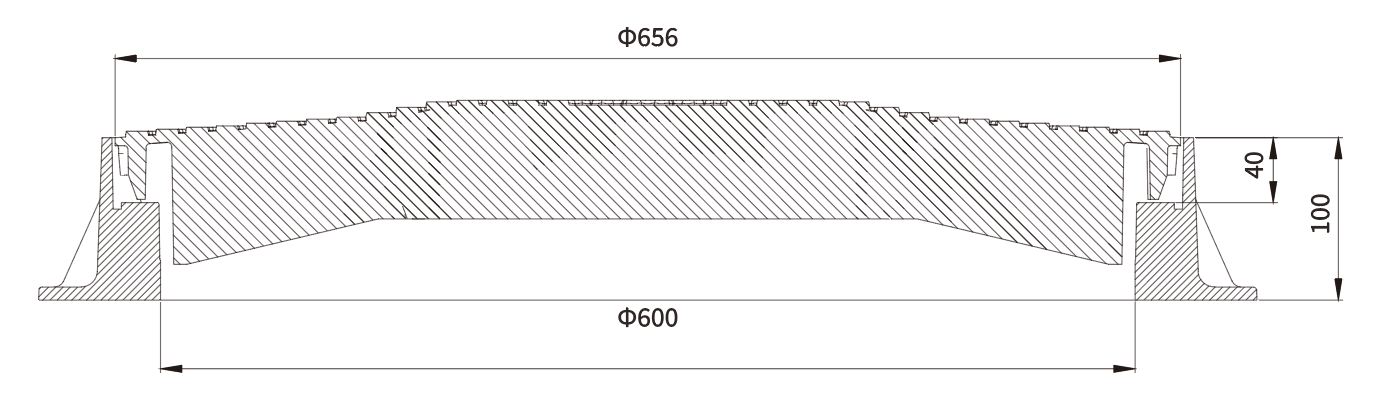

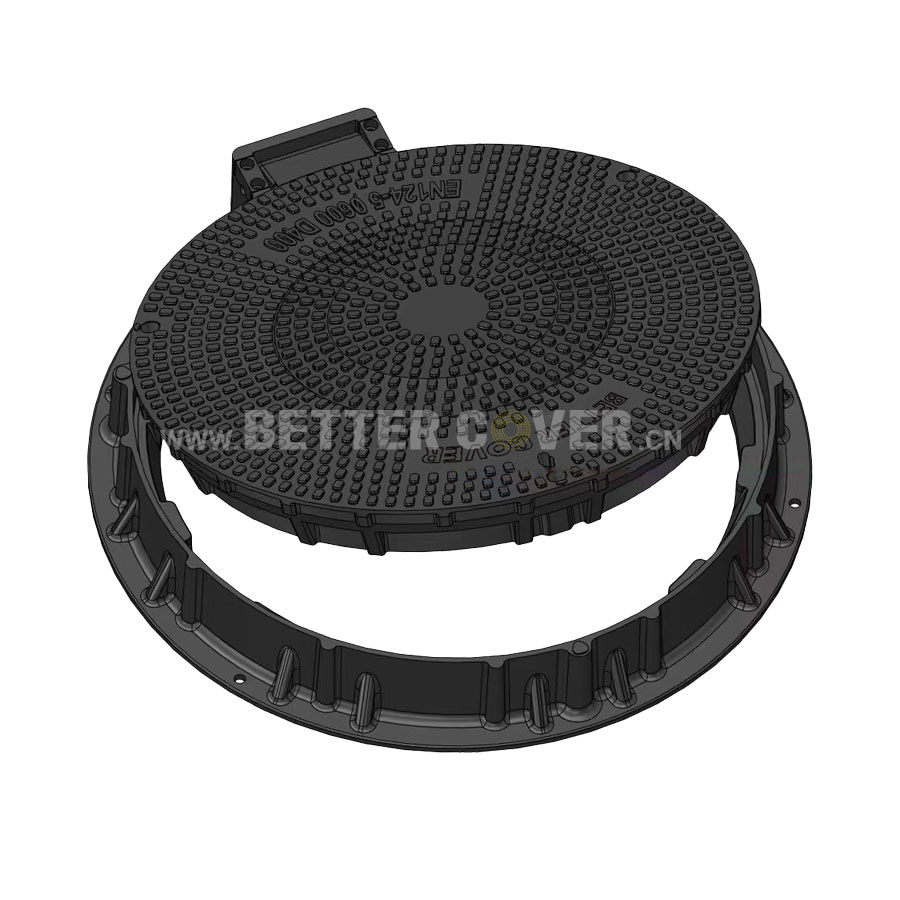

Product structure size (mm) |
Manhole cover Depth | Manhole cover Dia | Manhole Frame Height | Load Ratings |
| 40 | 660 | 60 | D400 | |
| Manhole Frame Outer Dia | Clear Open Dia | Inspection Cocer | Weight(Kg) | |
| 750 | 600 |   | 27 |
|

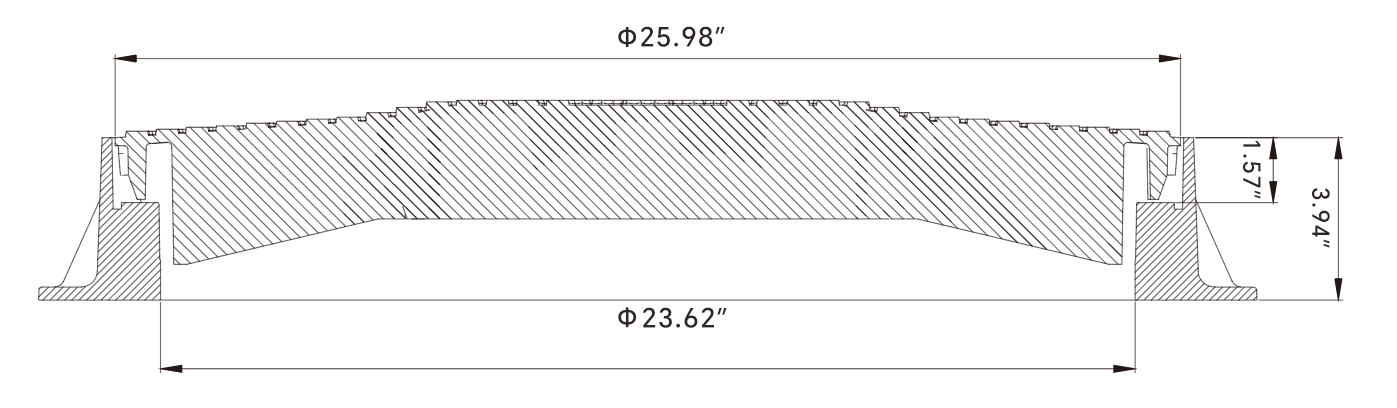

Product structure size (in) |
Manhole cover Depth | Manhole cover Dia | Manhole Frame Height | Load Ratings |
| 1.57″ | 25.98″ | 2.36″ | D400 | |
| Manhole Frame Outer Dia | Clear Open Dia | Weight(Kg) | ||
| 29.53″ | 23.62″ | 27 |

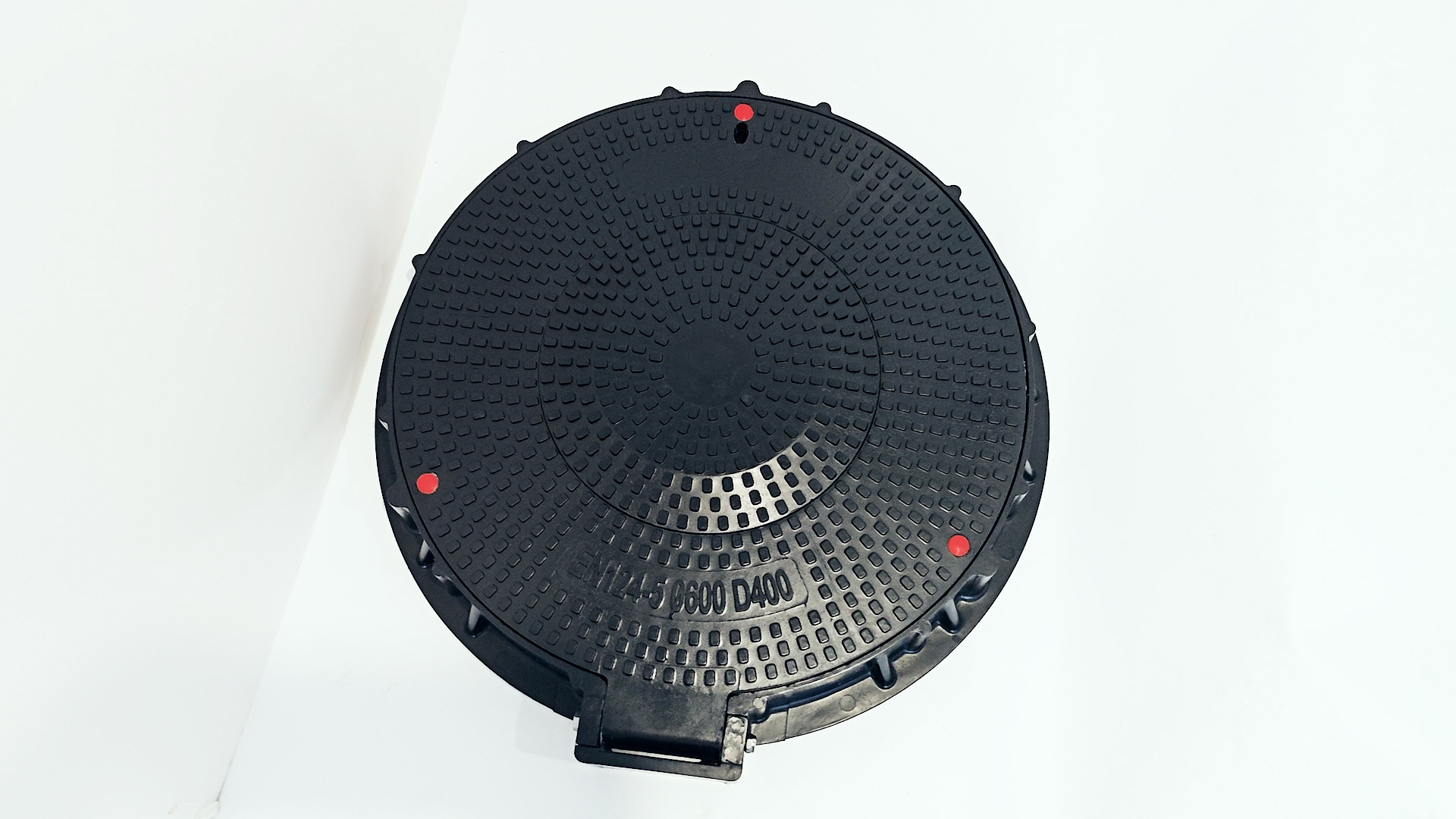

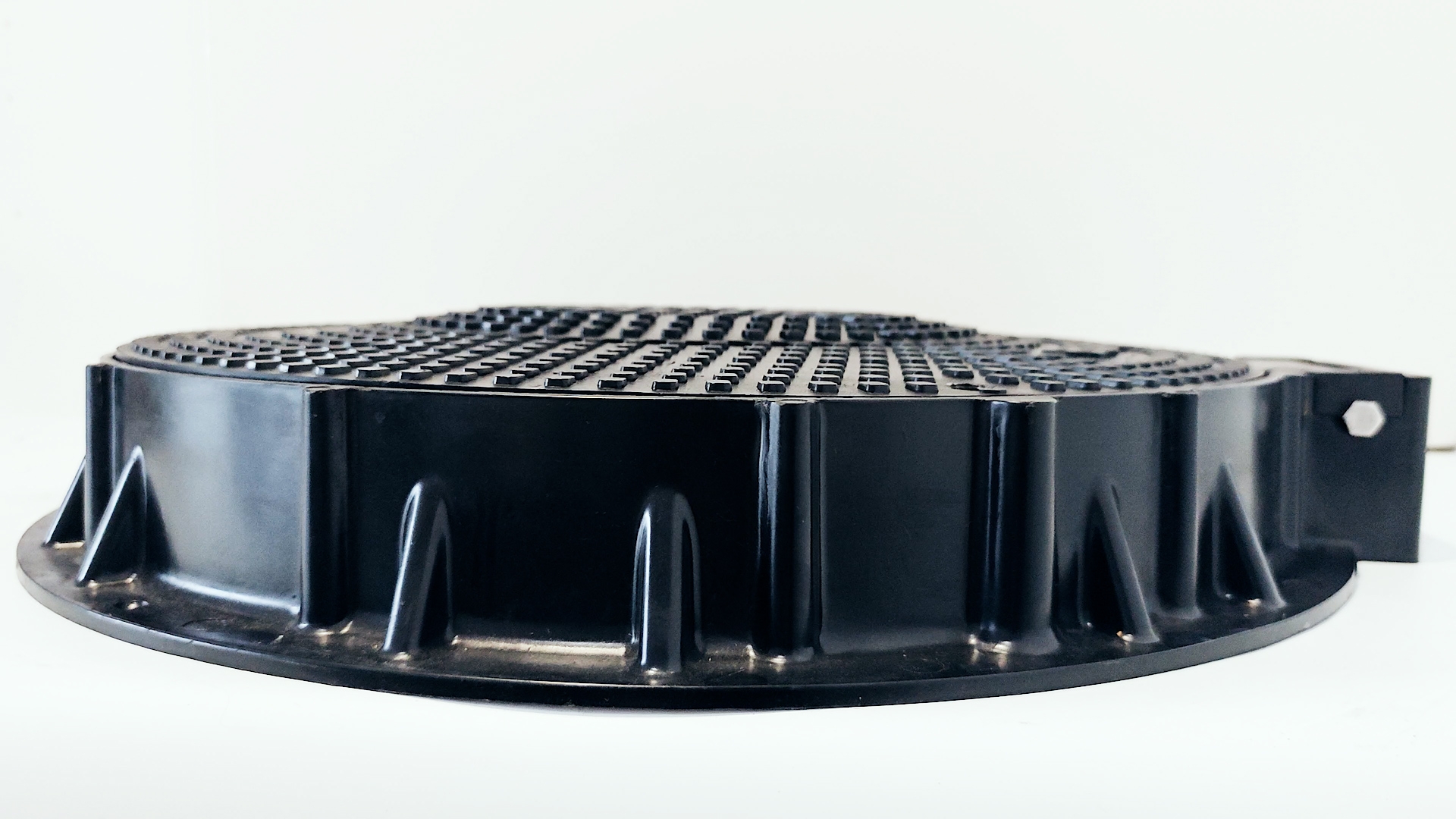

Product is made of high-quality SMC composite material
with no recycling value
The product is formed by high-temperature
high-pressure compression molding

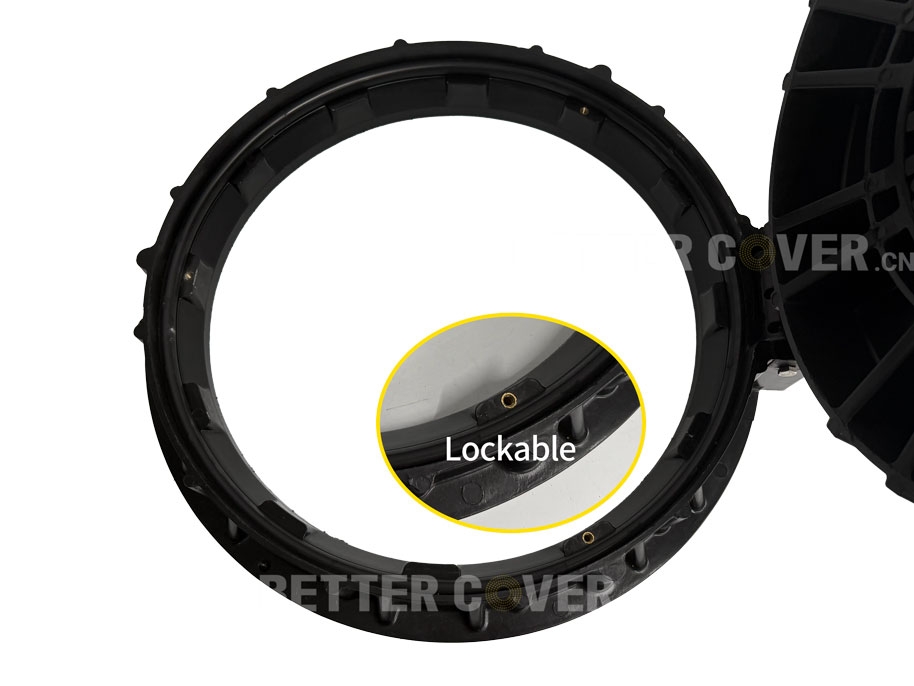

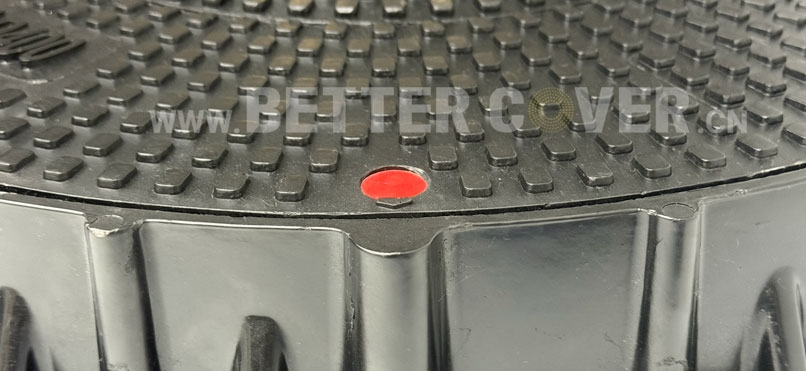

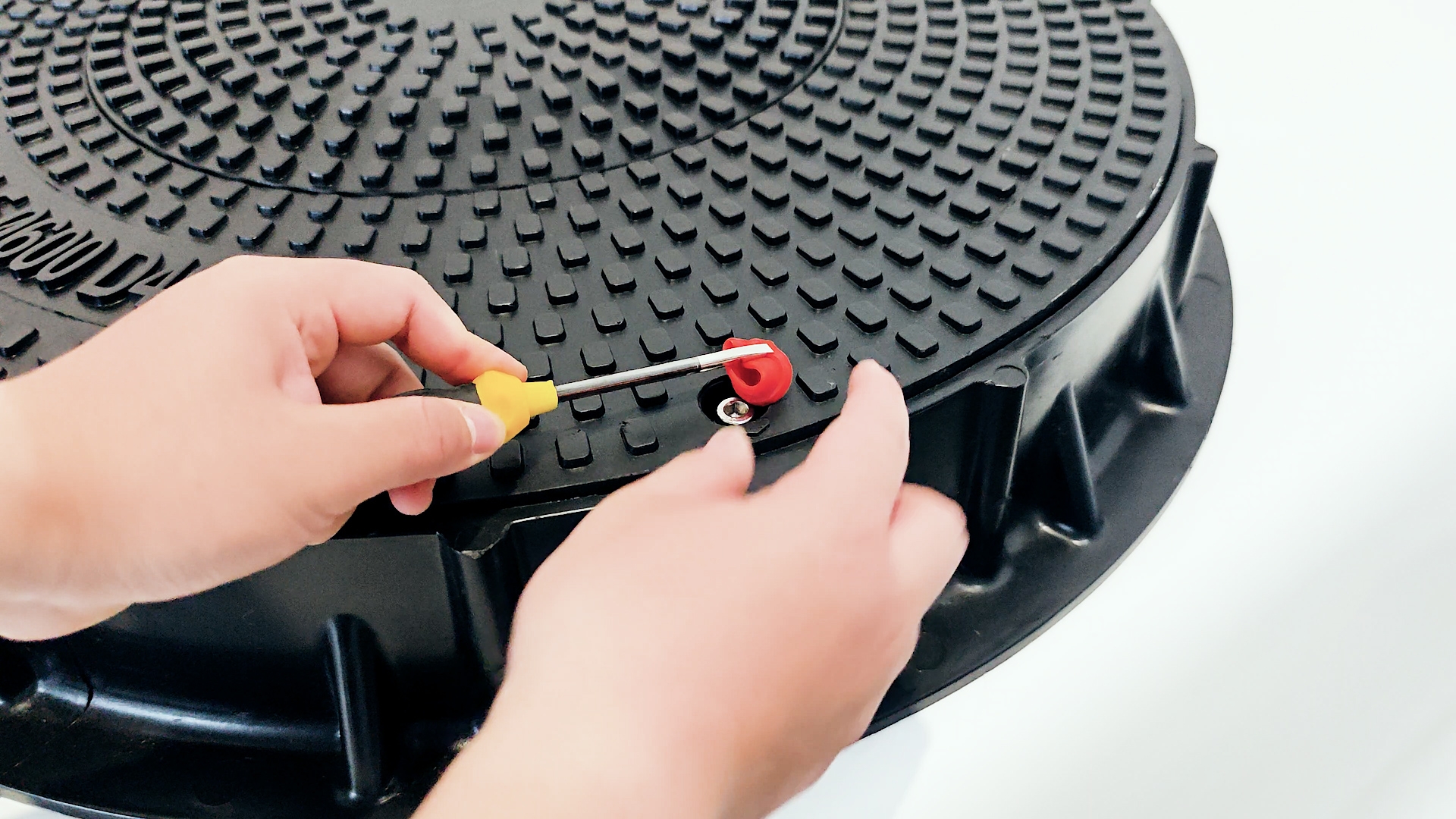

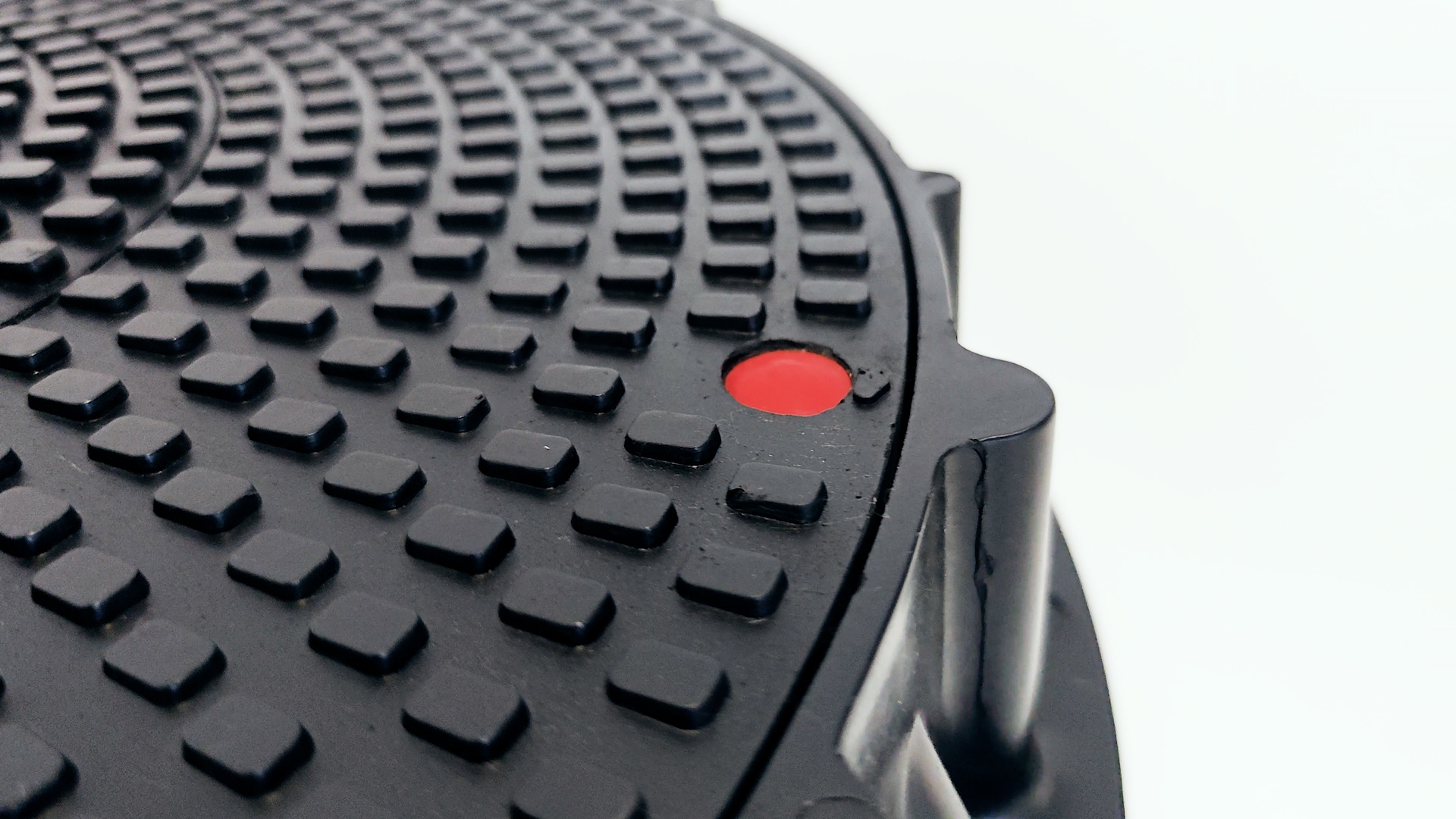

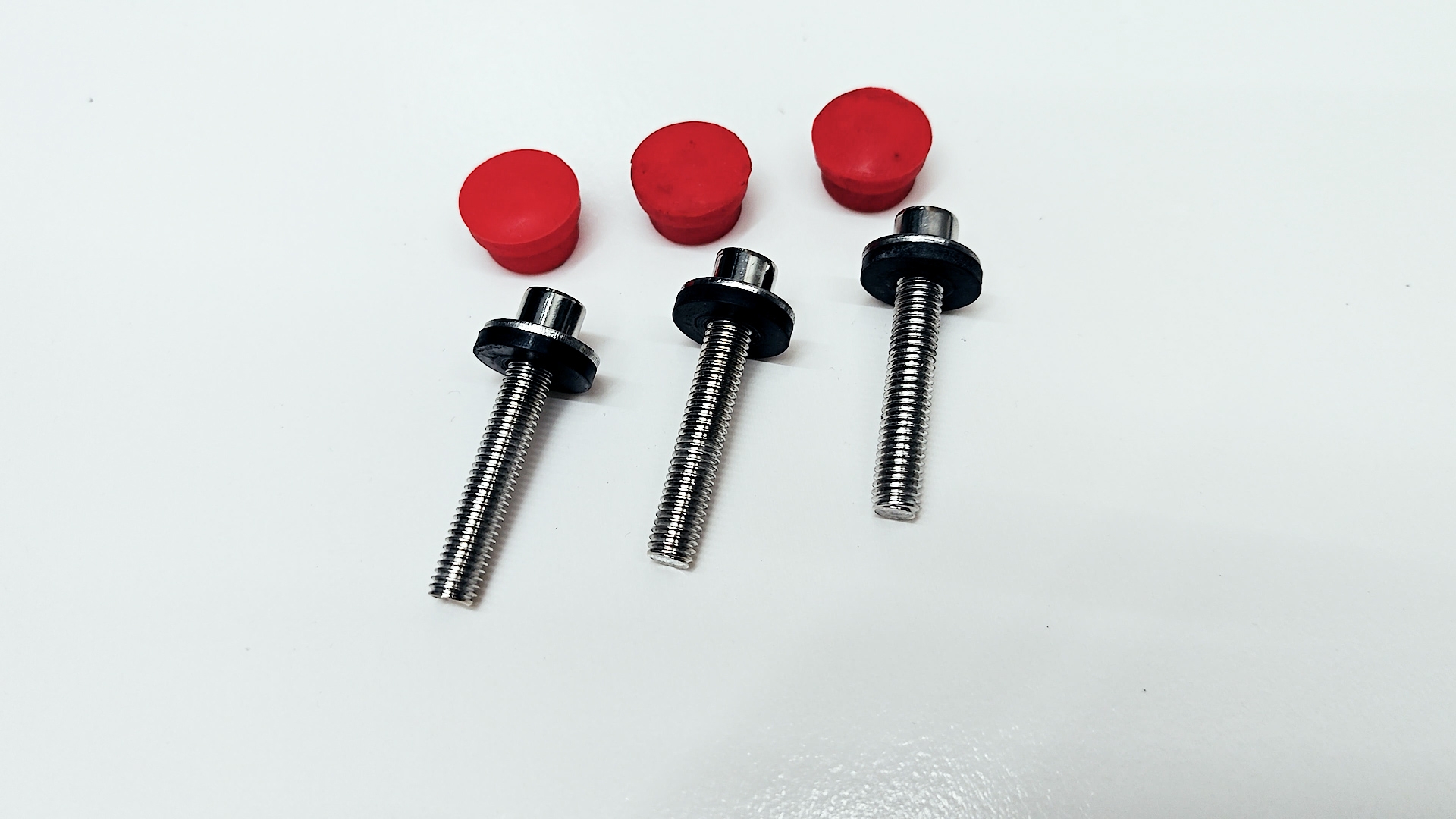

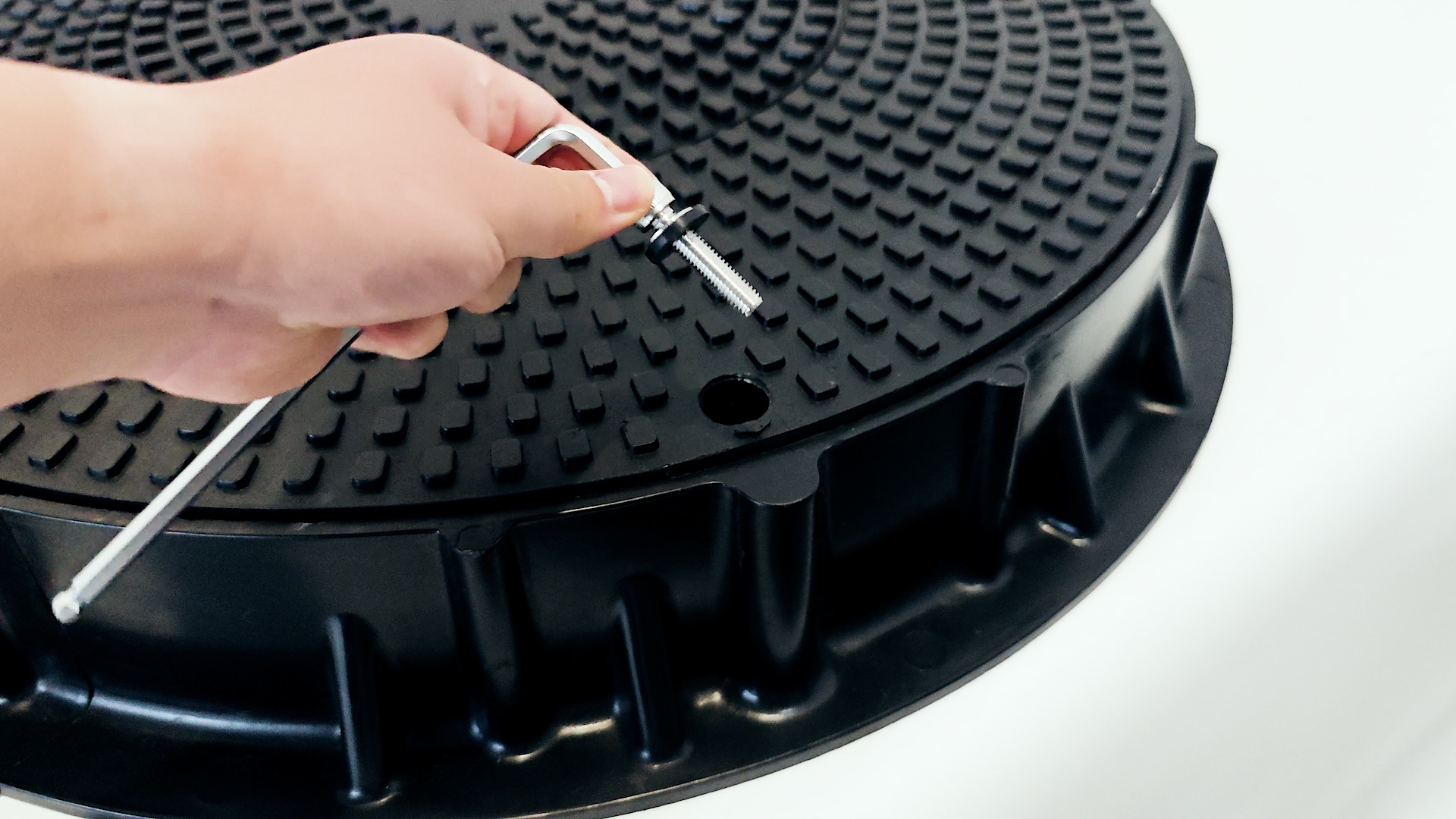

304 stainless steel locking bolt

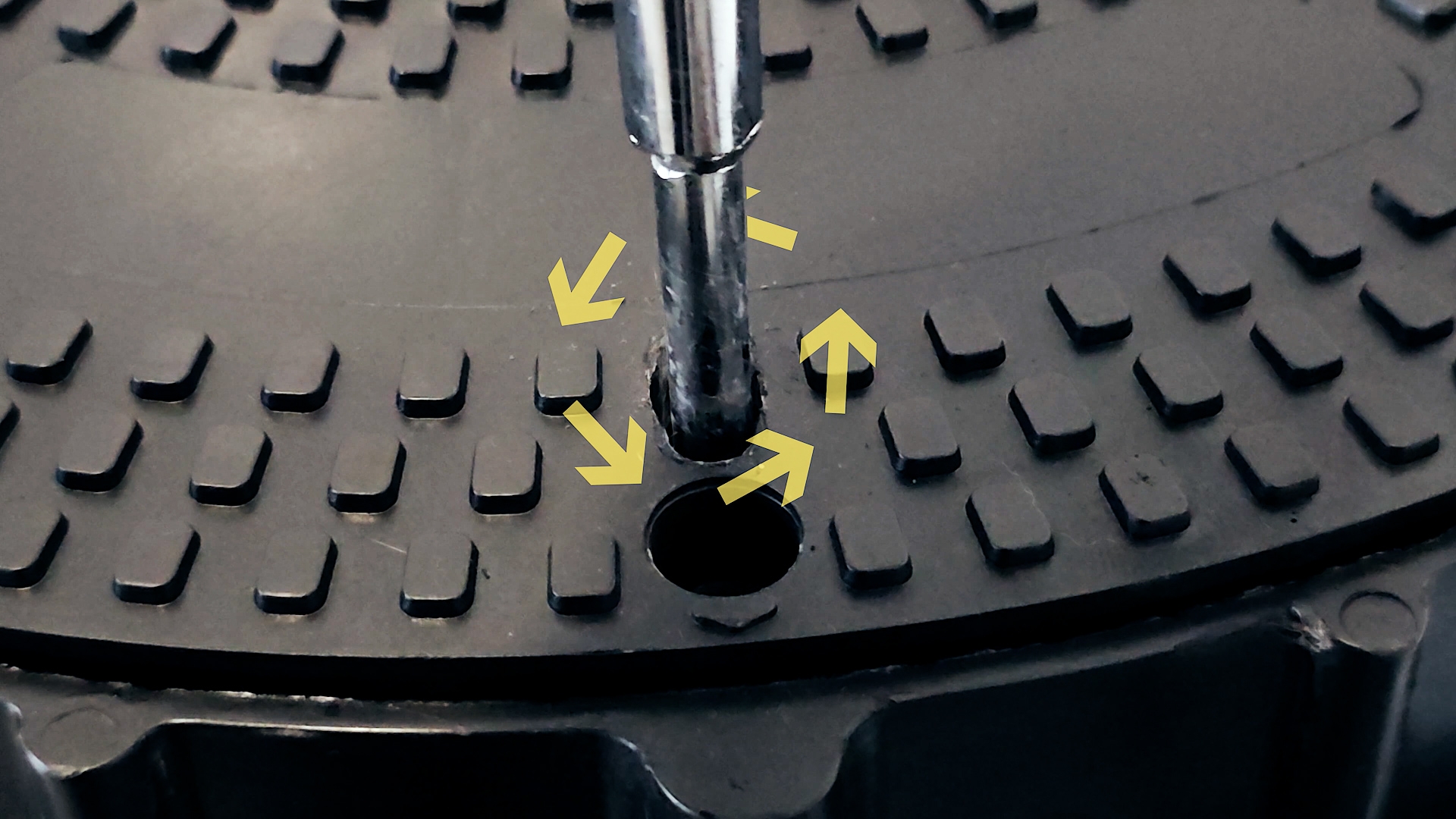

3-point locking design

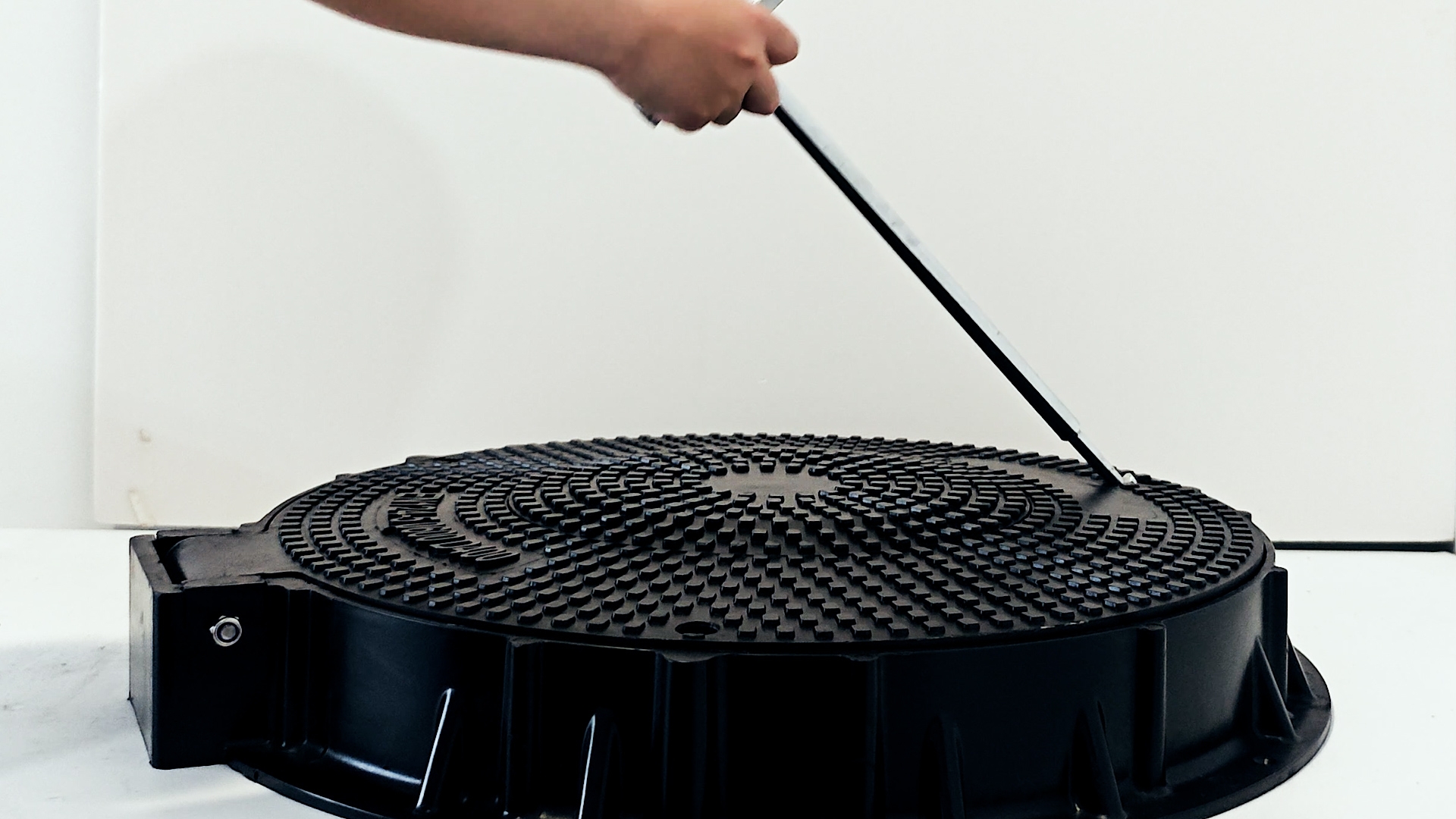

Lightweight manhole cover, easily opened by one person
Labor cost savings in installation and maintenance

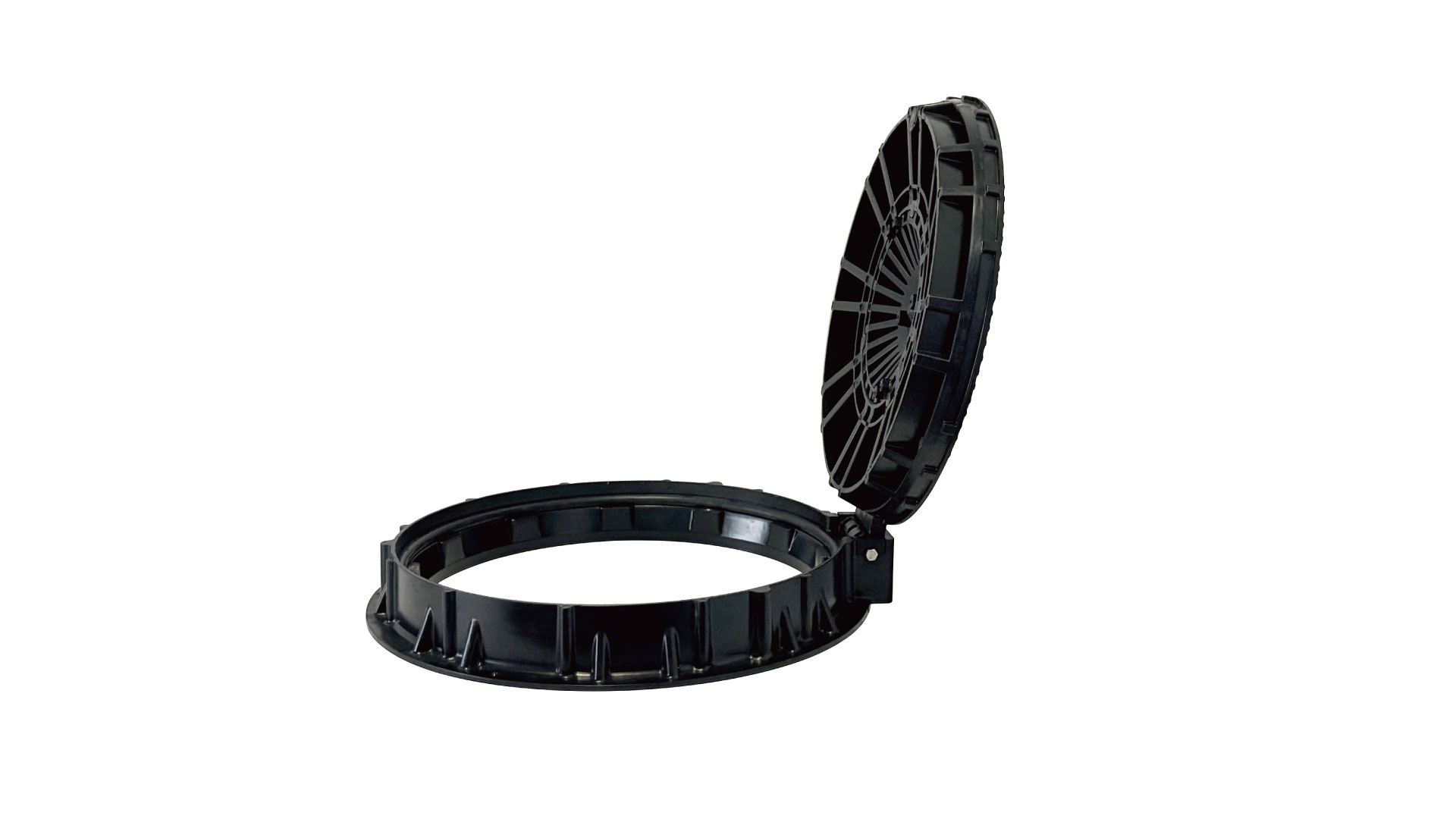

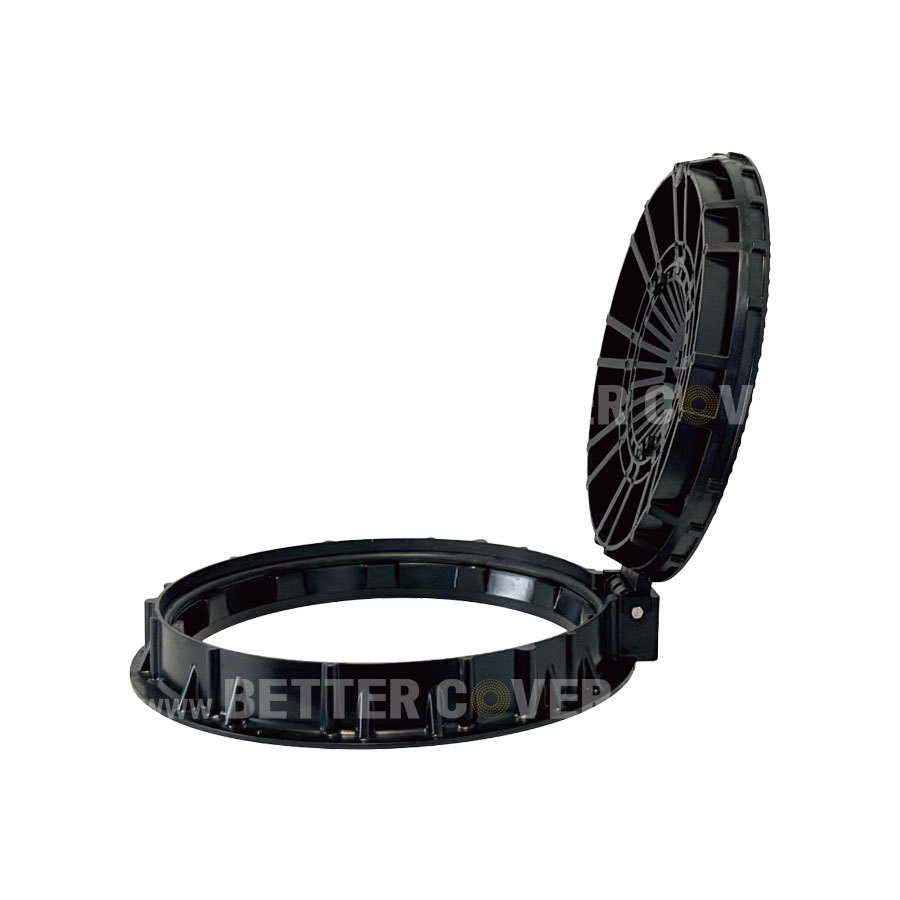

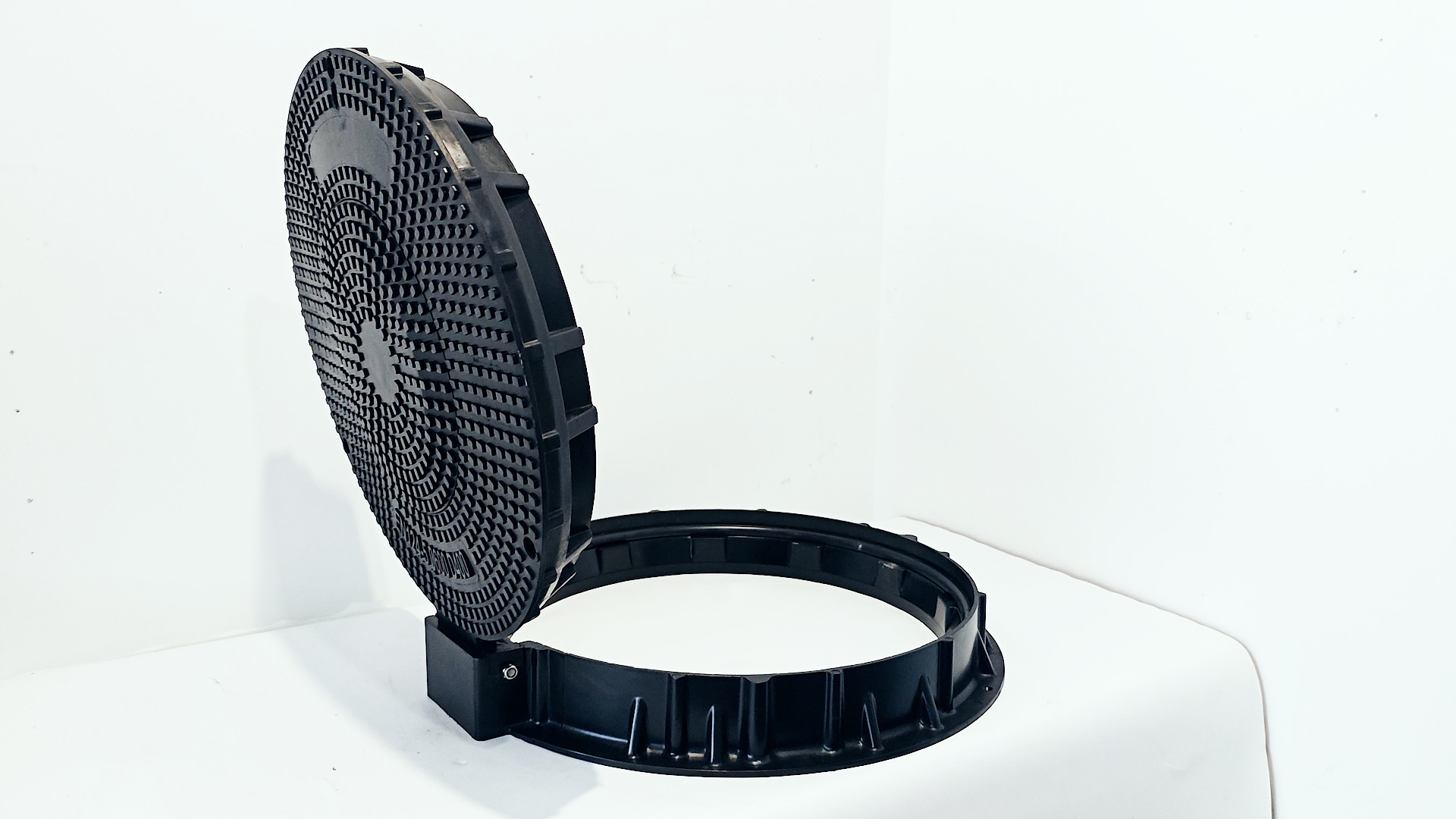

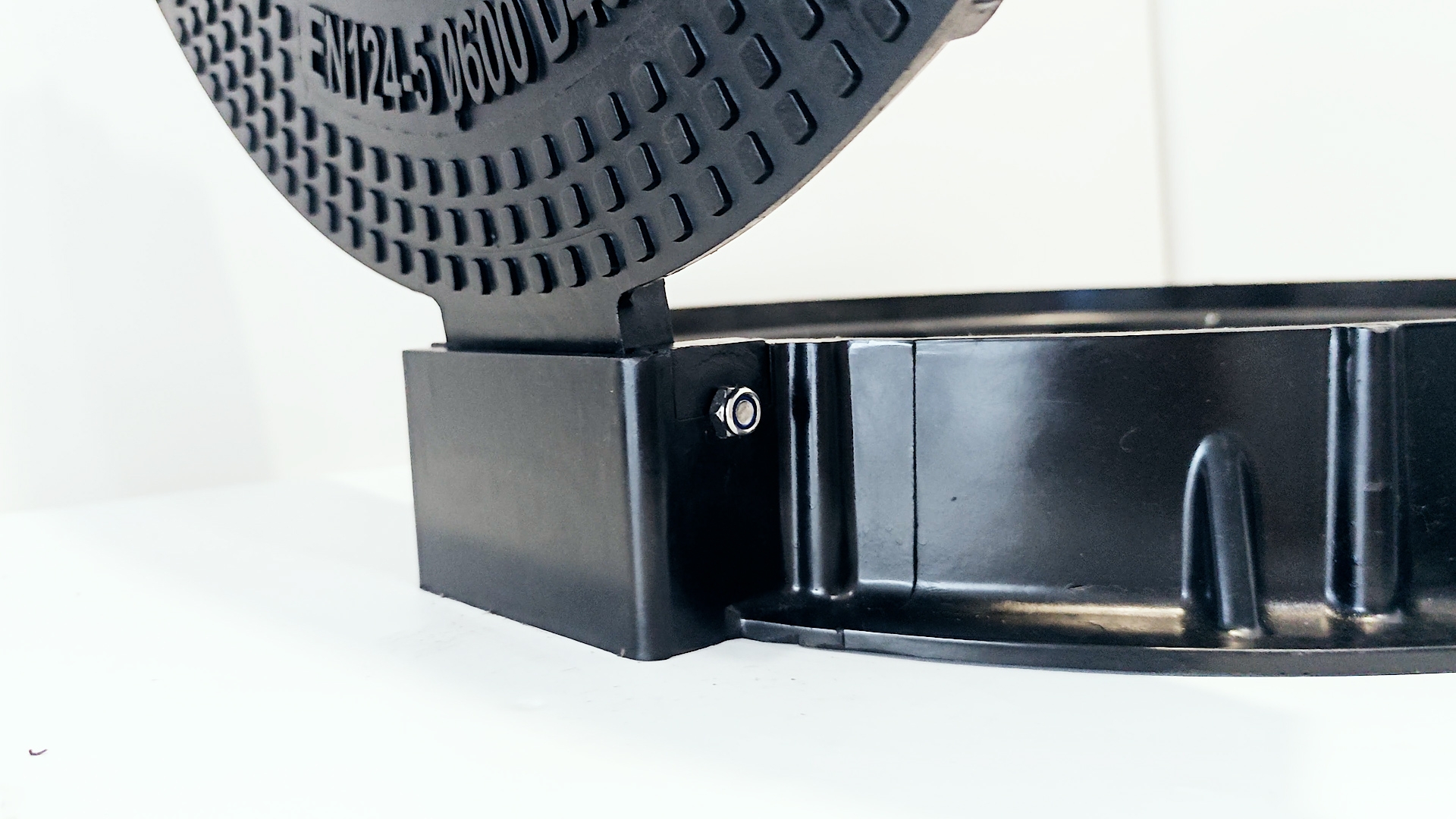

Hinge structure
Sturdy and reliable
Sealed structure, 100% waterproof
Prevents odor leakage

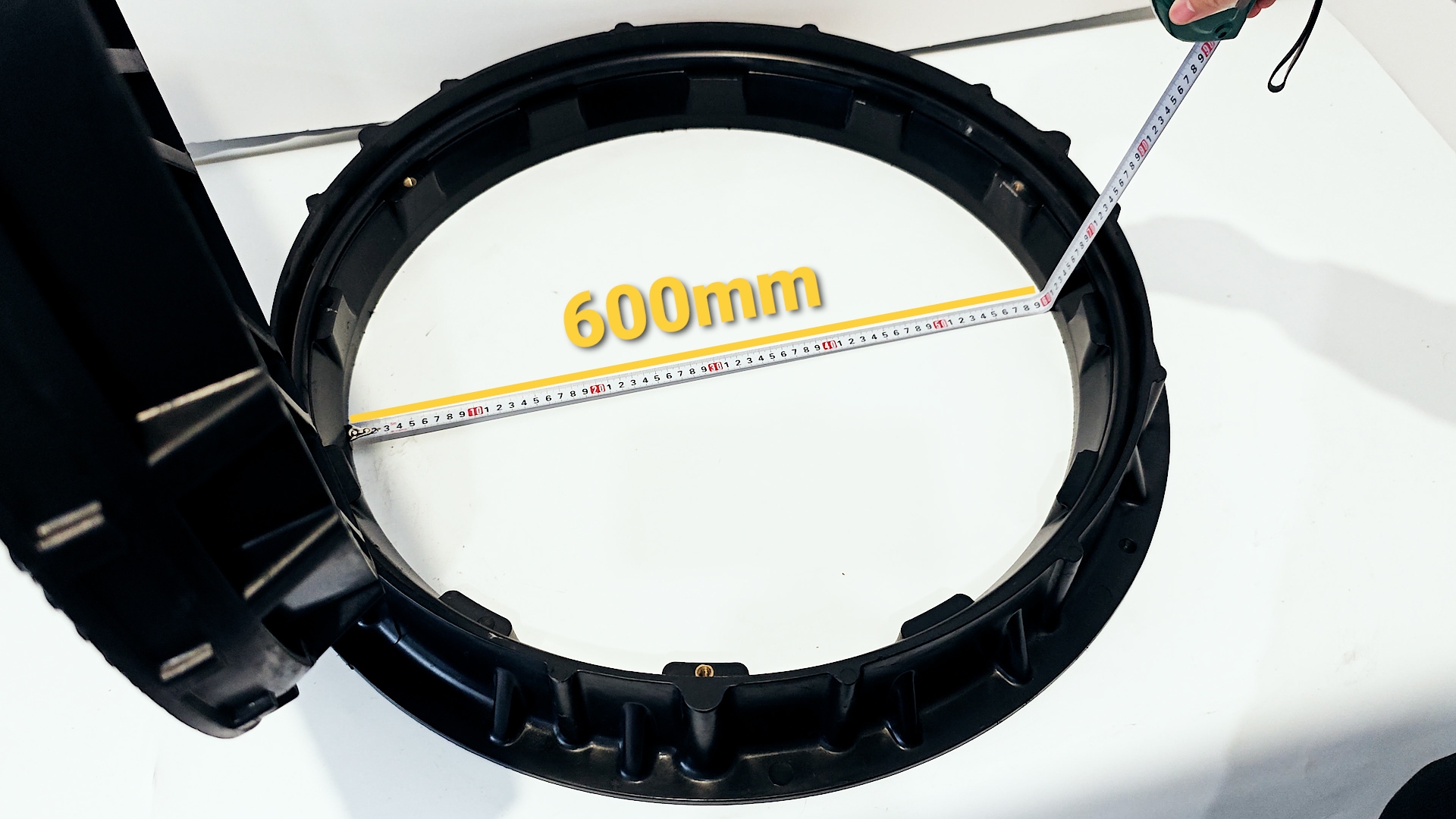

Clear open:Φ600mm/23.62 in

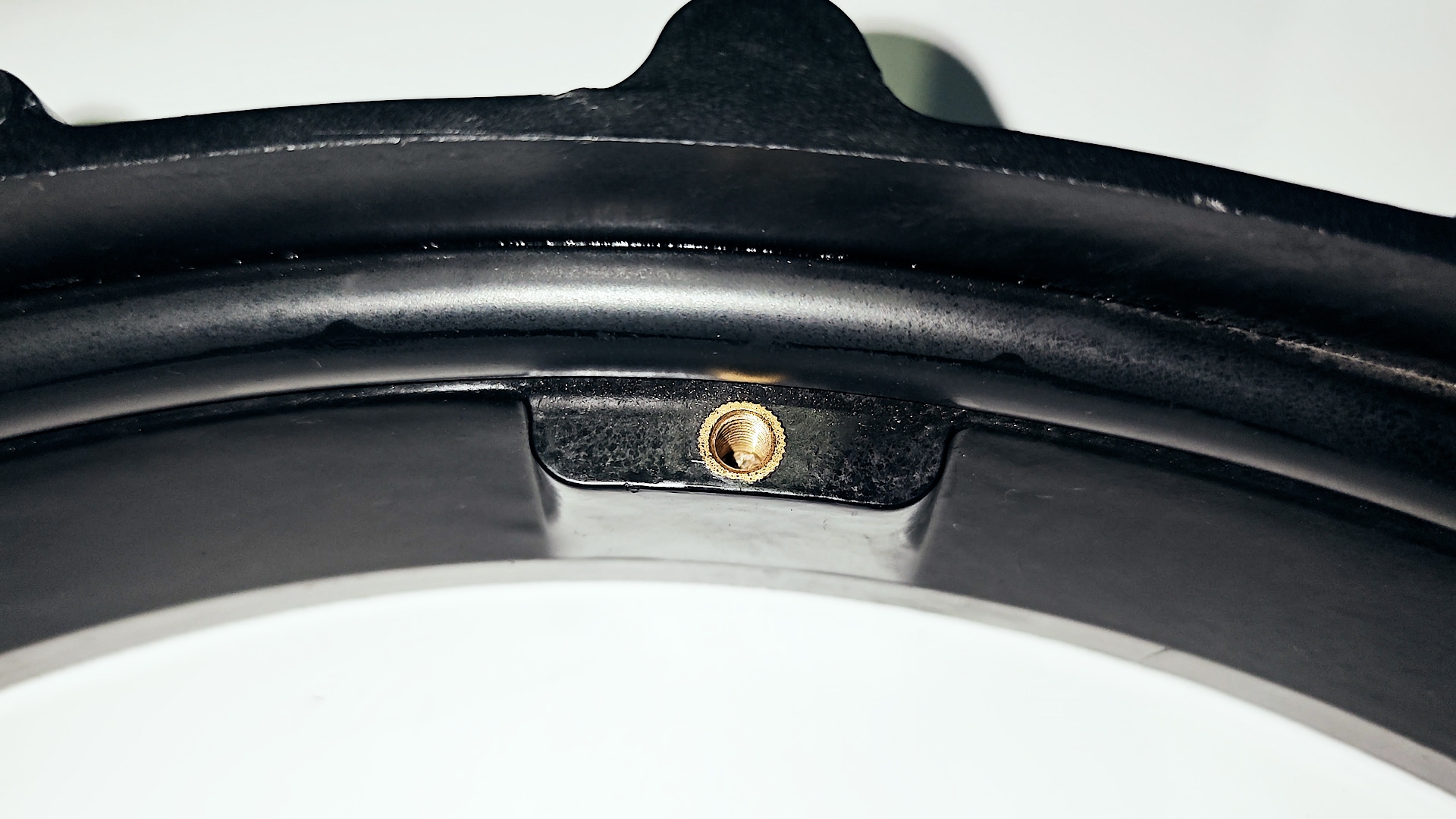

● Strong Sealing Performance

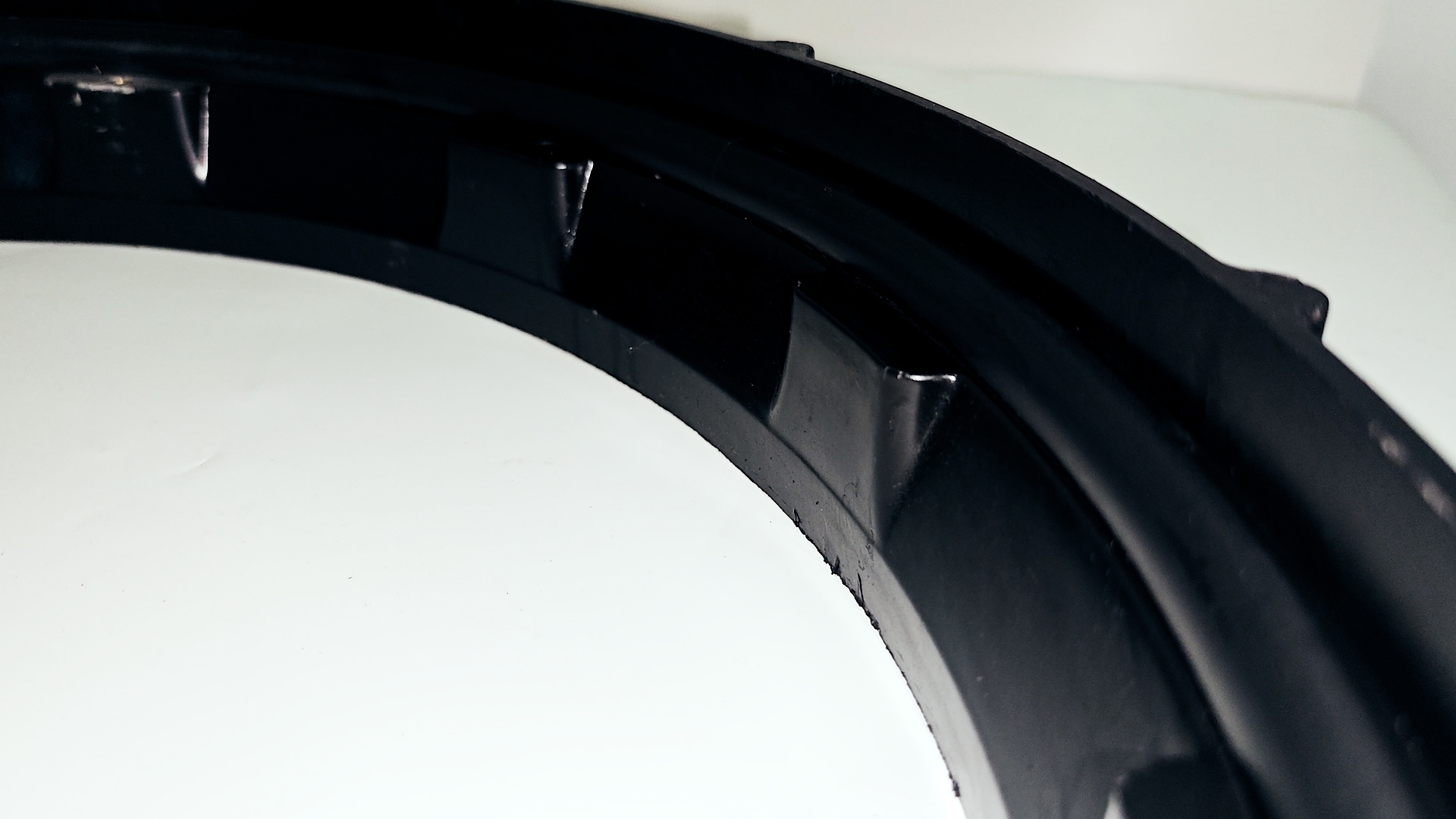

The oblique cut design of the sealing ring has a large contact surface, increasing the sealing strength.
High fit of manhole cover and seat, stable structure and tiny deformation.
●Tool
We have mature OEM and ODM experience

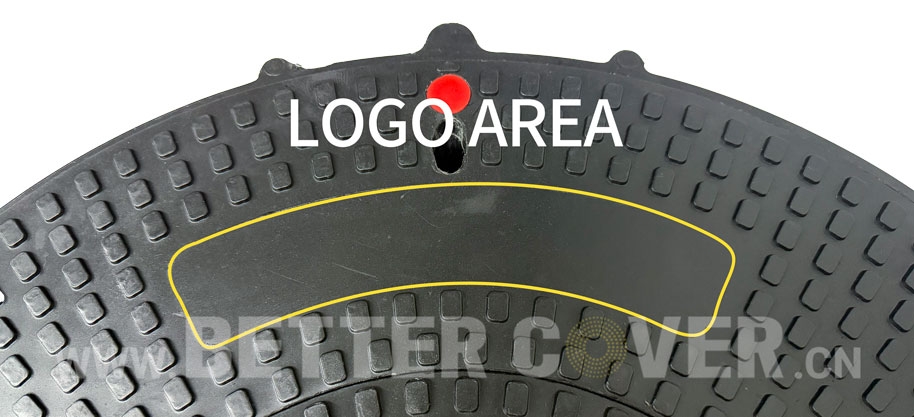

Customizable logo, cover pattern, color and size
The weight of composite manhole cover is 1 / 4 of that of traditional manhole cover with the same volume

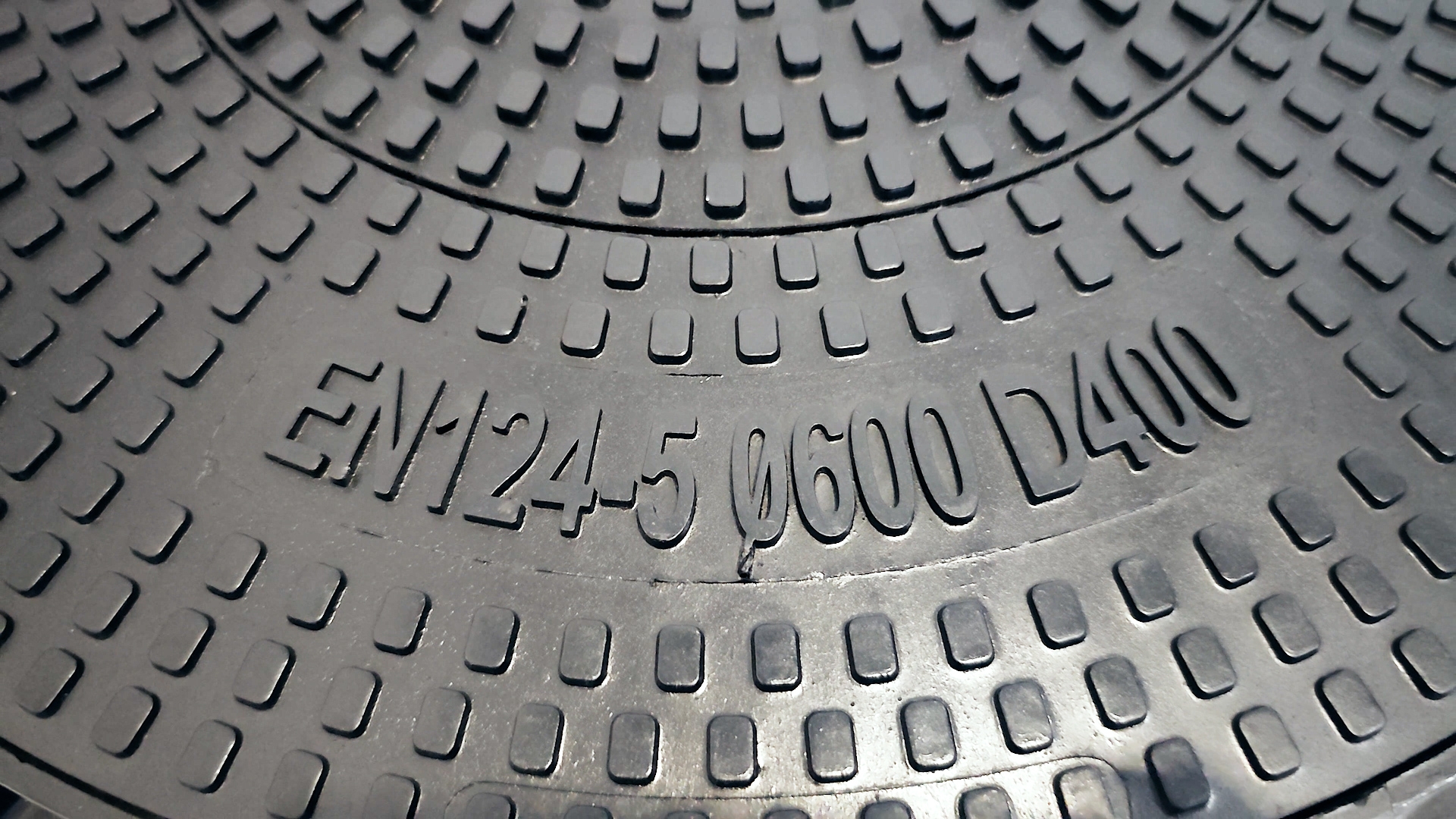

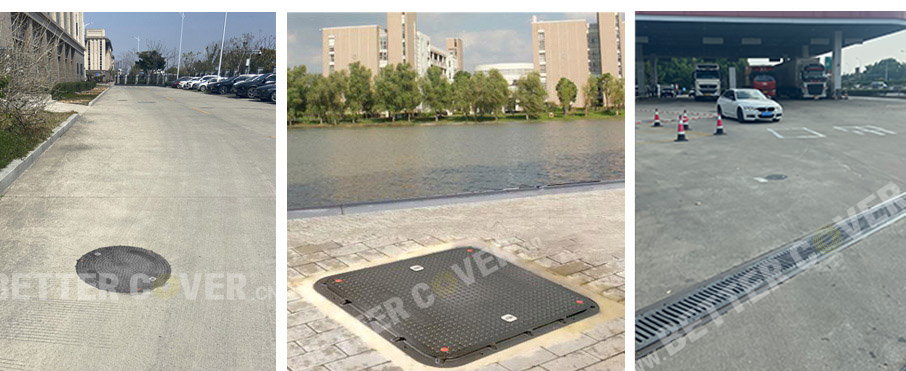

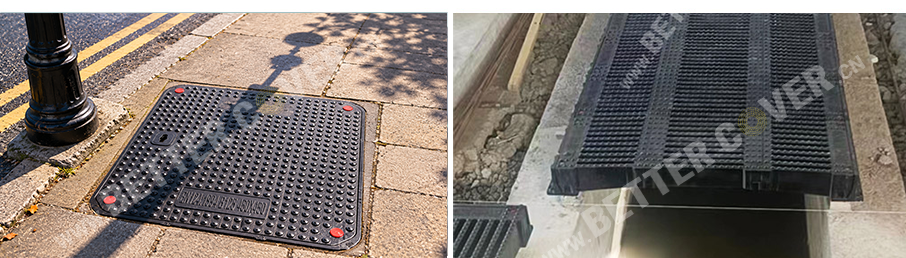

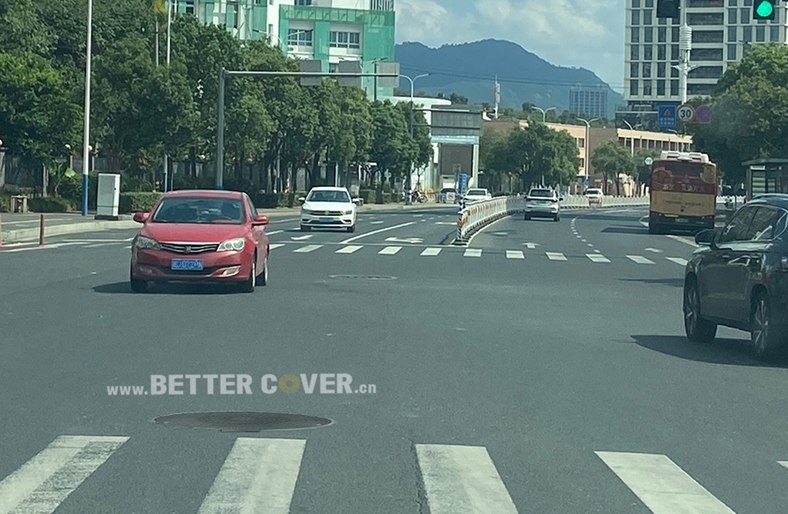

Products comply with EN124-5 2015 and AS3996 2006 standards, and are suitable for applications in -50°-150° ambient temperature, as well as in lawns, indoors, sidewalks, non-motorized lanes,car parking lots 、Gas stations, freight stations, docks and other heavy roads and sites that are frequently used Meet all kinds of products with A15, B125,C250, D400, E600 load-bearing grades.
We can provide standard carton, wooden box, iron pallet and other packaging, or according to your requirements.
